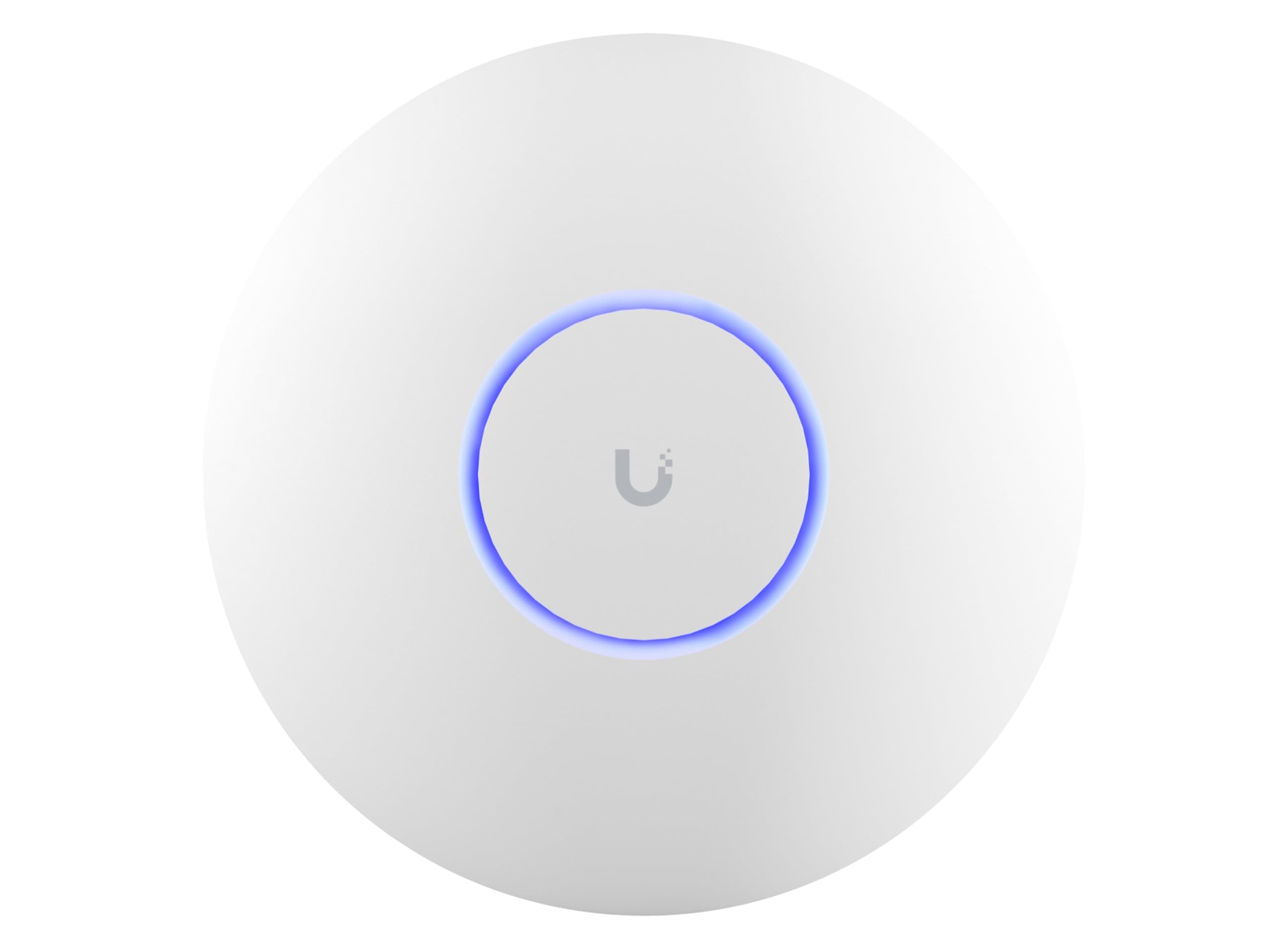

1 / 7Ubiquiti UniFi U7 Pro Wi-Fi 7 Access Point
EAN 0810084693650 Part number U7-PRO
Versions
This item (U7-PRO)Five-pack of U7 Pro
Versions with a link are sold here. Check the part number before you order.
Key facts
| WiFi Standard | WiFi 7 (With 6 GHz support) |
|---|---|
| Spatial Streams | 6 |
| Coverage Area (m²) | 140 |
| Max. Client Count | 300+ |
| Max. Power Consumption | 21W |
| Product weight | 680 g |
About this item
- WiFi 7 ceiling-mounted access point with 6 GHz support
- Tri-band radios on 6 GHz, 5 GHz and 2.4 GHz
- Up to 5.8 Gbps on 6 GHz and 4.3 Gbps on 5 GHz
- Powered by PoE+ over a 2.5 GbE RJ45 port
- Ceiling and wall mounting with the included Pro Mount
Accessories and spares
| Part number | What it is |
|---|---|
| UACC-AP-AM | AP Arm Mount |
| U-PoE+ | UniFi PoE+ Adapter (30W) |
| UACC-U7-Cover | Access Point U7 Cover |
Parts the manufacturer lists for this model. Parts we sell link to their page.
Similar products
Ubiquiti UniFi U6+ Wi-Fi 6 Access Point
UBIQUITI ACCESS POINT UNIFI U7 PRO MAX WIFI 7
UBIQUITI UNFI U7 PRO OUTDOOR ACCESS POINT WIFI 7
Ubiquiti U7-PRO-WALL Wireless Access Point
Ubiquiti Unifi Access Point Pro WIFI 6 Indoor 4x4 MU-MIMO 300 User
HPE NETWORKING INSTANT ON ACCESS POINT A P32 (RW) DUAL RADIO WIFI 6 WI-FI 6E 802
HPE NETWORKING INSTANT ON ACCESS POINT A P25 (RW) 4x4 Wi-Fi 6
Ubiquiti U7-LITE Wireless Access PointFrom the same category on this site. Compare the specifications before you order.
Product information
Technical details
| Product details | |
|---|---|
| WiFi Standard | WiFi 7 (With 6 GHz support) |
| Spatial Streams | 6 |
| Coverage Area (m²) | 140 |
| Max. Client Count | 300+ |
| Max. Power Consumption | 21W |
| Product weight | 680 g |
| Overview | |
| Product dimensions | ⌀206 x 46 mm |
| Uplink | 2.5 GbE |
| Mounting | Ceiling, Wall (Pro Mount Included) |
| Power Method | PoE+ |
| Performance | |
| Max. Data Rate - 6 GHz | 5.8 Gbps (BW320) |
| Max. Data Rate - 5 GHz | 4.3 Gbps (BW240) |
| Max. Data Rate - 2.4 GHz | 688 Mbps (BW40) |
| Antenna Gain - 6 GHz (dBi) | 5.8 |
| Antenna Gain - 5 GHz (dBi) | 6 |
| Antenna Gain - 2.4 GHz (dBi) | 4 |
| Max. TX Power - 6 GHz (dBm) | 23 |
| Max. TX Power - 5 GHz (dBm) | 26 |
| Max. TX Power - 2.4 GHz (dBm) | 23 |
| Max. BSSIDs per radio | 8 |
| Supported Data Rates - 802.11be (WiFi 7) | 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
| Supported Data Rates - 802.11ax (WiFi 6/6E) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| Supported Data Rates - 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| Supported Data Rates - 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Features | |
| Wireless Meshing | Yes |
| Band Steering | Yes |
| 802.11v BSS Transition Management | Yes |
| 802.11r Fast Roaming | Yes |
| 802.11k Radio Resource Management (RRM) | Yes |
| Advanced Radio Management | Yes |
| Captive Hotspot Portal - Custom Branding Landing Page | Yes |
| Captive Hotspot Portal - Payment-Based Authentication | Yes |
| Captive Hotspot Portal - External Portal Server Support | Yes |
| Captive Hotspot Portal - Password Authentication | Yes |
| Captive Hotspot Portal - Guest Network Isolation | Yes |
| Private Pre-Shared Key (PPSK) | Yes |
| WiFi Speed Limiting | Yes |
| Client Device Isolation | Yes |
| WiFi Schedules | Yes |
| RADIUS over TLS (RadSec) | Yes |
| Dynamic RADIUS-assigned VLAN | Yes |
| Hardware | |
| Supported Voltage Range | 44–57V DC |
| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Management | Ethernet |
| Enclosure Material | Polycarbonate, metal |
| Mount Material | Stainless steel (SUS304), galvanized steel (SGCC) |
| LEDs - System | White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
| Operating Frequency | US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz U-NII-5 to U-NII-8: 5925 - 7125 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5850 MHz 5925 - 7125 MHz (For worldwide, it depends on the regulatory region) |
| Ambient Operating Temperature | -30 to 40° C (-22 to 104° F) |
| Ambient Operating Humidity (noncondensing) | 5 - 95% |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel: 06370-24-08356 |
| Software | |
| Application Requirements - UniFi Network | Version 8.0.28 and later |
Additional information
| Part number | U7-PRO |
|---|---|
| EAN | 0810084693650 |
| Weight | 1.27 kg |
| Dimensions | 24.9 × 24.5 × 10 cm |
Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.
What’s in the boxUniFi U7 Pro access point
- UniFi U7 Pro access point
- Pro Mount (ceiling/wall mounting, per the Mounting spec)
Package contents for this part number.
Safety and complianceCE, FCC, IC and Anatel listed in tech specs
| Item | Detail |
|---|---|
| Certifications | CE, FCC, IC and Anatel listed in tech specs |
| EU declaration of conformity | EU DoC: RED, EMC, LVD, RoHS, REACH; dated 24 July 2025 |
| UK declaration of conformity | UK DoC with UKCA marking under Radio Equipment Regulations 2017 |
| Notified body | Notified and Approved Body TIMCO Engineering, number 1177 |
| Manufacturer | Ubiquiti Inc., 685 Third Avenue, New York NY 10017, USA |
| WEEE and REACH | WEEE and REACH compliance documents listed on compliance page |
Conformity, safety and origin details as the manufacturer publishes them.
Sustainability and repairGift box, accessory box and card: paper (PAP 20 / 21); co…
| Item | Detail |
|---|---|
| Packaging material labelling (UniFi Access point family, Decision 97/129/EC) | Gift box, accessory box and card: paper (PAP 20 / 21); compliance insert: paper (PAP 22); plastic parts carry plastic resin codes (e.g. LDPE 4, PET 1, PP 5). Some parts apply to some models only. |
| Packaging disposal guideline | Separate collection: check your local municipal guidelines; separate the components and dispose of them correctly. |
| Max. power consumption | 21W |
Only statements the manufacturer makes for this product or its family.
Warranty, returns and support2 years from delivery when bought from Ubiquiti webstore
| Item | Detail |
|---|---|
| Warranty, direct from the manufacturer | 2 years from delivery when bought from Ubiquiti webstore |
| Warranty, through a reseller | 1 year from shipment to authorised distributor or reseller |
| Where the warranty applies | Non-US customers ship at own cost and pay duties |
| Proof of purchase | Proof of purchase with date required; invoice may be requested |
| Registration | No registration requirement stated in warranty terms |
| Extended cover | Optional UI Care (UICARE-U7-Pro) extends cover to 5 years |
| Firmware and software | U7 Pro software and firmware download page |
| Technical specification | U7 Pro technical specification page |
| Installation guide | U7 Pro quick installation guide |
| Help centre | Ubiquiti help centre |
Our terms for this product
- Returns
- We sell to businesses only, so consumer withdrawal rights do not apply. Faulty, dead-on-arrival and wrongly supplied goods are returned through our RMA process; other returns are at our discretion and may carry a restocking fee.Source: Terms 7.1 and 7.2
- Damage
- Inspect goods on receipt and report visible damage, shortages or wrong items within 5 business days of delivery.Source: Terms 6.5
- Cancellation
- A contract is formed when we confirm your order in writing or when we start to perform it. Lead times are indicative, not fixed deadlines, unless agreed in writing, and late delivery does not entitle you to cancel, except where mandatory law provides otherwise.Source: Terms 2.2 and 6.1
- Resold goods
- Apart from faulty, dead-on-arrival, wrongly supplied and warranty returns, an item you have sold, transferred, hired or lent to another person or company cannot be returned.Source: Returns & RMA Policy, section 6
- Warranty
- Products carry the manufacturer's warranty, on the manufacturer's terms. For a defect we repair, replace or credit the goods, at our option, through our RMA process.Source: Terms 8.1 and 8.2
Who you are buying from
Envision Connect BV
Campus Seven Cities, Lange Kleiweg 62 B, Rijswijk, The Netherlands
KvK (Chamber of Commerce) 42063966
VAT NL869541894B01
UK VAT GB526156202
sales@envision-connect.com · +31 970 065 481 45 · +44 20 4646 7221
Our terms restate the clause they cite; the full text is on the linked page.
Security and support lifeVintage products still receive critical fixes and securit…
| Item | Detail |
|---|---|
| Update policy | Vintage products still receive critical fixes and security updates |
| Cybersecurity standard | EU and UK DoC cite EN 18031-1:2024 radio cybersecurity |
| Legacy status | Not on Ubiquiti Vintage and Legacy product list |
How long the manufacturer supports this product and, for connected products, its security updates and how to report a vulnerability.
From the manufacturer
Wide 6 GHz channels: supports wider WiFi 7 channels up to 320 MHz for higher throughput.
2.5 GbE PoE+ RJ45 uplink: multi-gig uplink supports consistent performance under heavy traffic, especially in high-density deployments.
In Ubiquiti’s words, from its product data, with its own images. Claims with conditions attached, and any not supported by the specification table, are omitted.
Product description
The UniFi U7 Pro is a ceiling-mounted WiFi 7 access point from Ubiquiti with 6 GHz support. It is powered by PoE+ over a 2.5 GbE RJ45 port and managed through UniFi Network.
Product video
Played from the manufacturer’s own file, only when you press play.
More from Ubiquiti
How we rank products
- Product lists use the store’s own catalogue order by default, and can also be sorted by newest.
- No list is ordered by sales or popularity.
- Similar products are chosen by category and brand, not by sales.
Buying from us
- How do I get a price for this product?
- Prices are shown to signed-in business customers and exclude VAT. VAT is shown separately at checkout and on the VAT invoice.Source: Terms 3.1, 4.2, 4.3
- Can I order a single unit?
- Consumable products can carry a minimum order quantity, and we may limit order quantities.Source: Terms 2.4
- Can you deliver direct to my customer?
- Goods are dispatched from the Netherlands. Delivery charges are shown at checkout, and lead times are indicative unless agreed in writing.Source: Terms 6.1 and 6.2
- How do I return an item?
- We sell to businesses only, so consumer withdrawal rights do not apply. Faulty, dead-on-arrival and wrongly supplied goods are returned through our RMA process; other returns are at our discretion and may carry a restocking fee.Source: Terms 7.1 and 7.2
- What warranty applies?
- Products carry the manufacturer's warranty, on the manufacturer's terms. For a defect we repair, replace or credit the goods, at our option, through our RMA process.Source: Terms 8.1 and 8.2
- Do I need a trade account to order?
- We sell to businesses only and may ask for proof of business status, such as a Chamber of Commerce or VAT number. Payment is due before dispatch unless net terms are agreed for an approved account.Source: Terms 1.2 and 5.2
Questions and answers
This is an automated helper; it answers from this page and our published terms. A person replies to anything it can't: sales@envision-connect.com
About this product
- Which PoE standard powers the U7 Pro?
- PoE+ (supported voltage range 44-57V DC, maximum consumption 21W).Source: manufacturer specification
- What WiFi standard and bands does it support?
- WiFi 7, with radios on the 6 GHz, 5 GHz and 2.4 GHz bands.Source: manufacturer specification
- What is the uplink speed?
- One 1/2.5 GbE RJ45 port; the uplink is listed as 2.5 GbE.Source: manufacturer specification
- How is the U7 Pro mounted?
- Ceiling or wall; the Pro Mount is included.Source: manufacturer specification
- Which UniFi Network version is required?
- Version 8.0.28 and later.Source: manufacturer specification
Ask a person on our contact page - quote the product reference 0810084693650 in your message.
Product answers restate the manufacturer’s specification; trade answers restate our published terms. We do not publish other customers’ questions or answers.
