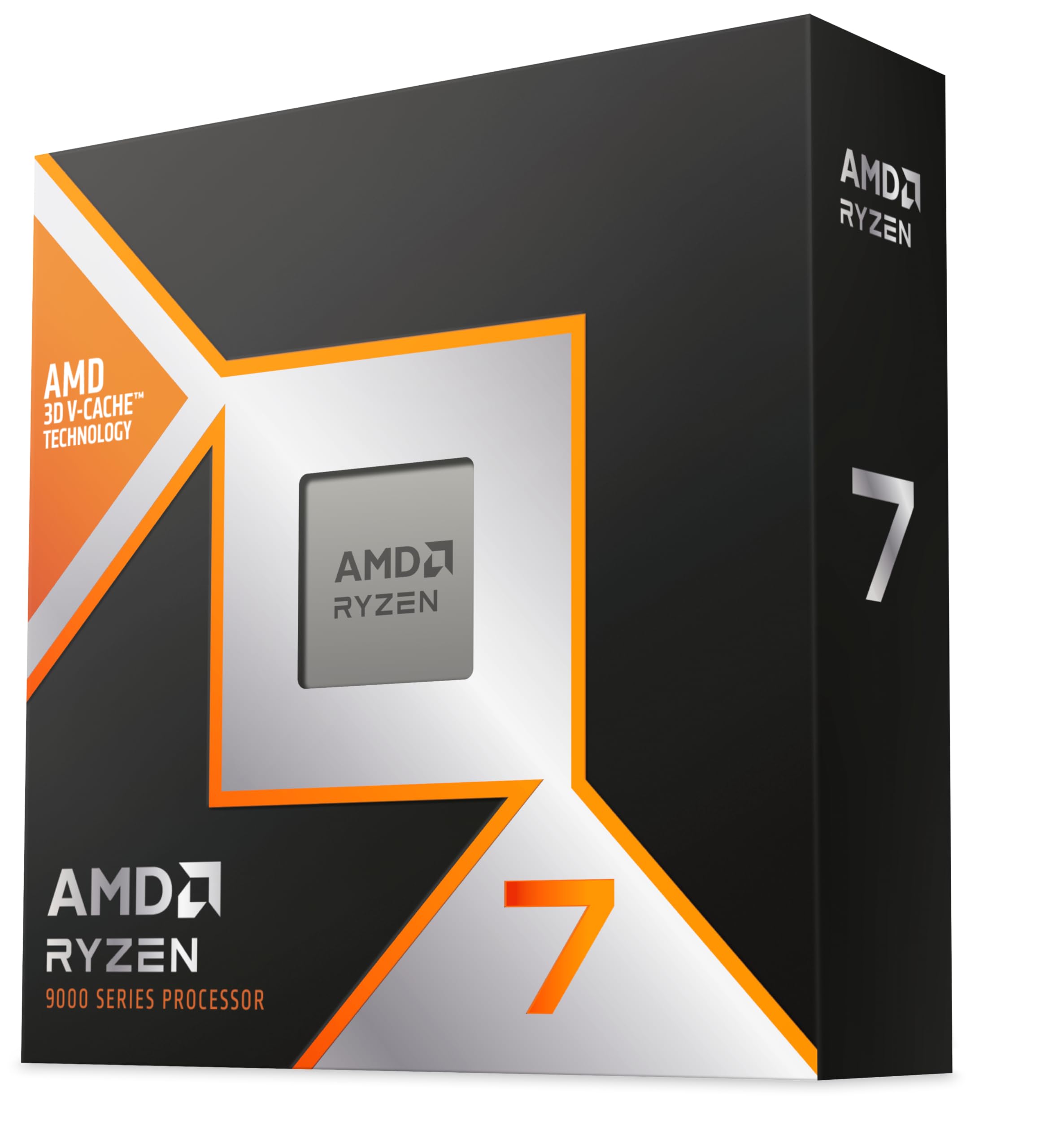

AMD Ryzen 7 9800X3D Processor, Boxed (100-100001084WOF)
EAN 0730143315289 SKU 100-100001084WOF
1 / 2At a glance
The AMD Ryzen 7 9800X3D Processor, Boxed (100-100001084WOF) (part number 100-100001084WOF) is made by AMD and is supplied to trade with pricing on enquiry.
# of CPU Cores8
# of Threads16
Max. Boost ClockUp to 5.2 GHz
Base Clock4.7 GHz
L3 Cache96 MB
Default TDP120W
About this item
- Desktop processor for socket AM5
- 4.7 GHz base clock, up to 5.2 GHz max boost clock
- 96 MB L3 cache with AMD 3D V-Cache
- 120 W default TDP
- DDR5 memory and PCIe 5.0 support
- AMD Radeon Graphics integrated
Product description
The AMD Ryzen 7 9800X3D is a desktop processor for socket AM5, with a 4.7 GHz base clock, up to 5.2 GHz max boost clock and 96 MB of L3 cache. This boxed version comes without a cooler.
Product information
Product details8 facts
| # of CPU Cores | 8 |
|---|---|
| # of Threads | 16 |
| Max. Boost Clock | Up to 5.2 GHz |
| Base Clock | 4.7 GHz |
| L3 Cache | 96 MB |
| Default TDP | 120W |
| Weight | 0.12 kg |
| Dimensions | 34.9 × 24.6 × 2.1 cm |
General Specifications24 facts
| Family | Ryzen |
|---|---|
| Series | Ryzen 9000 Series |
| Form Factor | Desktops, Boxed Processor |
| Processor Architecture | Zen, 5th generation |
| Multithreading (SMT) | Yes |
| L1 Cache | 640 KB |
| L2 Cache | 8 MB |
| Processor Technology for CPU Cores | TSMC 4nm FinFET |
| Processor Technology for I/O Die | TSMC 6nm FinFET |
| Package Die Count | 2 |
| Unlocked for Overclocking | Yes |
| AMD EXPO™ Memory Overclocking Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| AMD Ryzen™ Master Support | Yes |
| CPU Socket | AM5 |
| Supporting Chipsets | A620, X670E, X670, B650E, B650, X870E, X870, B840, B850 |
| CPU Boost Technology | Precision Boost version 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Thermal Solution (PIB) | Not Included |
| Recommended Cooler | Liquid cooler recommended for optimal performance |
| Max. Operating Temperature (Tjmax) | 95°C |
| *OS Support | Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit |
Connectivity11 facts
| Native USB 3.2 Gen 2 (10Gbps) | 4 |
|---|---|
| Native USB 2.0 (480Mbps) | 1 |
| PCI Express® Version | PCI Express 5.0 |
| Native PCIe® Lanes (Total/Usable) | 28, 24 |
| NVMe Support | Boot, RAID0, RAID1, RAID5, RAID10 |
| System Memory Type | DDR5 |
| Memory Channels | 2 |
| Max. Memory | 256 GB |
| System Memory Subtype | UDIMM |
| Max Memory Speed | 2x1R DDR5-5600 2x2R DDR5-5600 4x1R DDR5-3600 4x2R DDR5-3600 |
| ECC Support | Yes (Requires mobo support) |
Graphics Capabilities4 facts
| Graphics Model | AMD Radeon Graphics |
|---|---|
| Graphics Core Count | 2 |
| Graphics Frequency | 2200 MHz |
| USB Type-C® DisplayPort™ Alternate Mode | Yes |
Product IDs2 facts
| Product ID Boxed | 100-100001084WOF |
|---|---|
| Product ID Tray | 100-000001084 |
Key Features1 fact
| Supported Technologies | AMD EXPO Technology, AMD Ryzen Technologies |
|---|
Specifications as listed in our catalogue. Rows naming a price, rating, review or rank are never shown.
Product guides & documents
- Product specifications (AMD.com) Web page opens the manufacturer’s site
- Drivers and support Web page opens the manufacturer’s site
Questions and answers
About this product
- Which socket does it use and which chipsets are supported?
- AM5 socket with A620, X670E, X670, B650E, B650, X870E, X870, B840, B850 chipsets.Source: manufacturer specification
- Is a cooler included in the box?
- Thermal solution (PIB): Not Included. Liquid cooler recommended for optimal performance.Source: manufacturer specification
- What memory does it support?
- DDR5, up to 256 GB (2x1R DDR5-5600 2x2R DDR5-5600 4x1R DDR5-3600 4x2R DDR5-3600).Source: manufacturer specification
- Does it have integrated graphics?
- Graphics model: AMD Radeon Graphics, 2 graphics core(s) at 2200 MHz.Source: manufacturer specification
- What are the clock speeds and TDP?
- Base clock 4.7 GHz, max boost up to 5.2 GHz, default TDP 120W.Source: manufacturer specification
- Which PCI Express version is supported?
- PCIe 5.0.Source: manufacturer specification
Ask a person on our contact page - quote the product reference 0730143315289 in your message.
Answers restate the manufacturer’s specification shown on this page. We do not publish other customers’ questions or answers.
